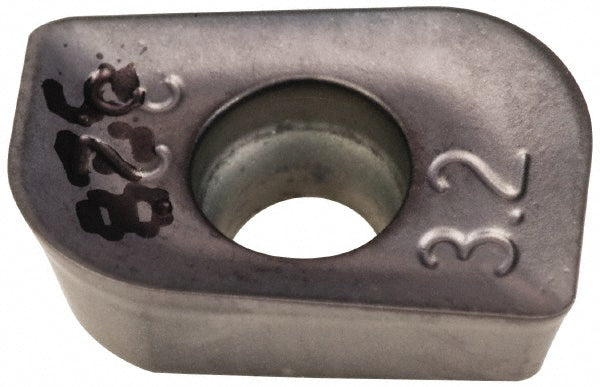

APKT 100332TR-RM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5691208
MFR# 5691208ISO/ANSI# APKT 100332TR-RMCat# APKT 100332TR-RM IC928Series HELIMILL
$21.47List $27.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5691208 is a APKT 100332TR-RM solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPKT 100332TR-RM IC928
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityHM90-10
Cutting edge effective length0.3800
Cutting edge styleChamfered; Honed
Hole diameter0.1100
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100332
Insert styleAPKT
Iso codeAPKT 100332TR-RM
Length0.4210
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 100332TR-RM IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3620
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle23
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1370
Thickness range0.1250 to 0.1500
Width0.2640
