APKT 1003PDR-HM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5691218

Iscar

APKT 1003PDR-HM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5691218

MFR# 5691218ISO/ANSI# APKT 1003PDR-HMCat# APKT 1003PDR-HM IC928Series HELIMILL

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

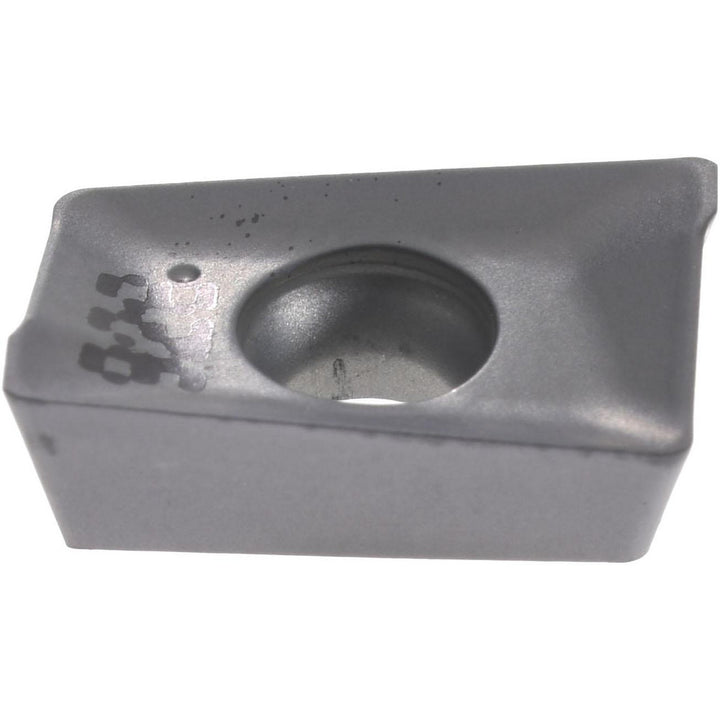

The Iscar 5691218 is a APKT 1003PDR-HM solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 1003PDR-HM IC928
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.4310
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDR-HM
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDR-HM IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.2640
