APCR 1003PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5691263

Iscar

APCR 1003PDFR-P Solid Carbide Insert, Grade IC28 - Iscar 5691263

MFR# 5691263ISO/ANSI# APCR 1003PDFR-PCat# APCR 1003PDFR-P IC28Series HELIMILL

$24.91List $31.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC28
MaterialSolid Carbide

Description

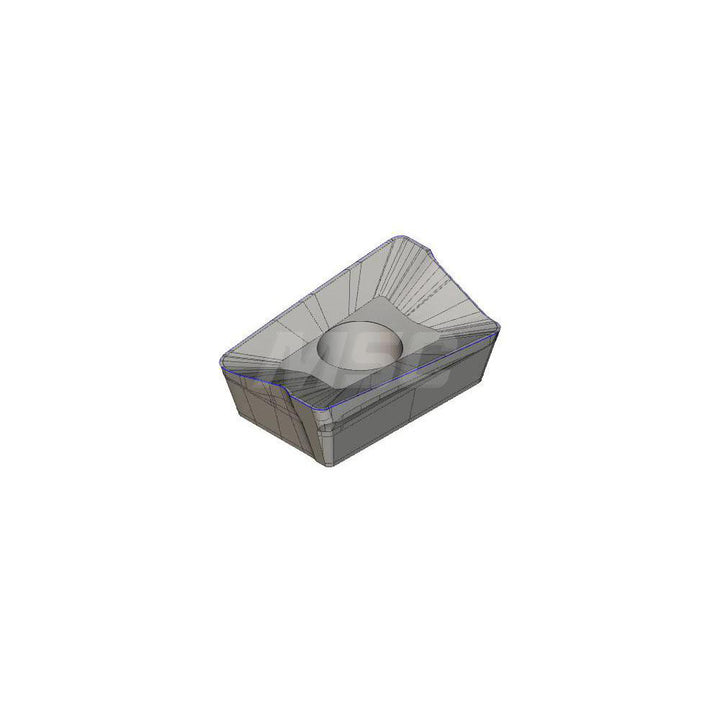

The Iscar 5691263 is a APCR 1003PDFR-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeAPCR 1003PDFR-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.4060
Cutting edge styleSharp
Hole diameter0.1100
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPCR
Iso codeAPCR 1003PDFR-P
Length0.4410
Length range0.4000 to 0.4500
Manufacturers catalog numberAPCR 1003PDFR-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2640
