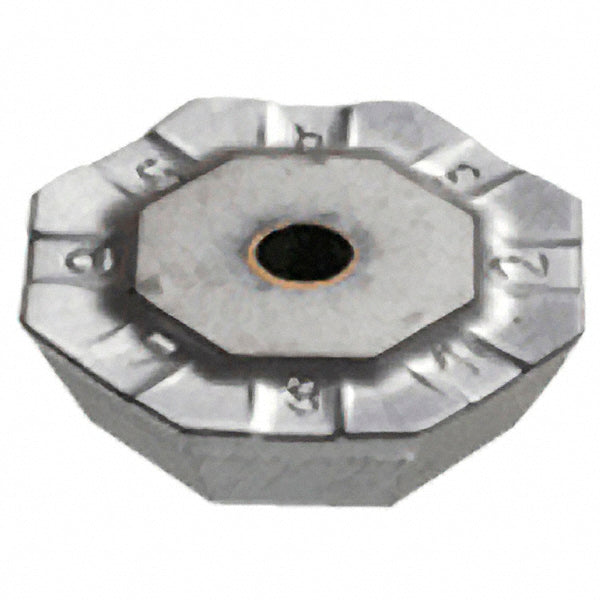

OFMR 0704-AER-76 Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5691868

Iscar

OFMR 0704-AER-76 Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5691868

MFR# 5691868ISO/ANSI# OFMR 0704-AER-76Cat# OFMR 0704AER-76 IC950Series HELIOCTO

$22.02List $28.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5691868 is a OFMR 0704-AER-76 solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeOFMR 0704AER-76 IC950
Chip breaker76
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutting edge effective length0.2090
Cutting edge styleHoned
Included angle degree135
Inscribed circle0.7010
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size07
Insert size code0704
Insert styleOFMR
Iso codeOFMR 0704-AER-76
Length0.7010
Length range0.7000 to 0.9000
Manufacturers catalog numberOFMR 0704AER-76 IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.2090
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1790
Thickness range0.1750 to 0.1850
Width0.7010
