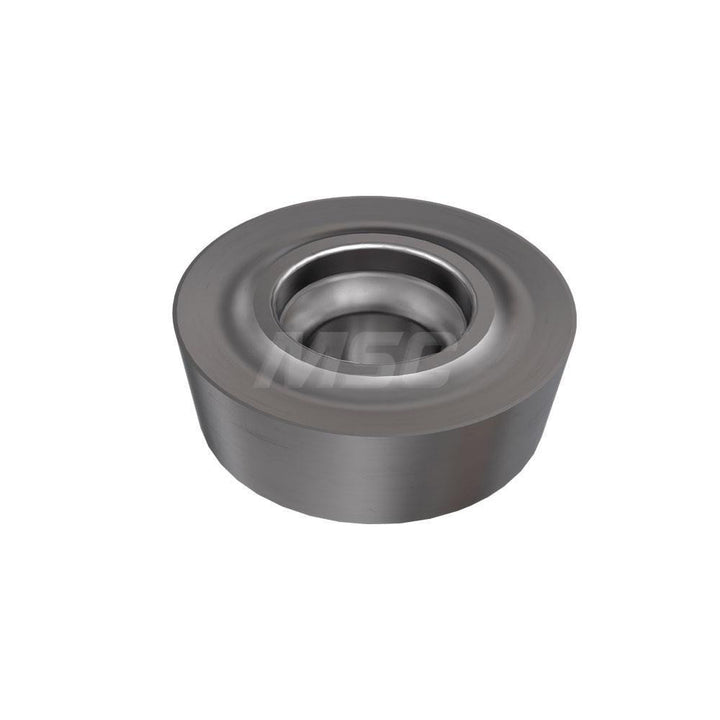

RCCT 1206MO-T Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5691982

Iscar

RCCT 1206MO-T Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5691982

MFR# 5691982ISO/ANSI# RCCT 1206MO-TCat# RCCT 1206MO-T IC928Series MILLSHRED

$17.49List $22.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5691982 is a RCCT 1206MO-T solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeRCCT 1206MO-T IC928
Chip breakerT
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityFRW; ERW
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1206
Insert styleRCCT
Iso codeRCCT 1206MO-T
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberRCCT 1206MO-T IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1570
Thickness range0.1500 to 0.1750
Width0.4724
