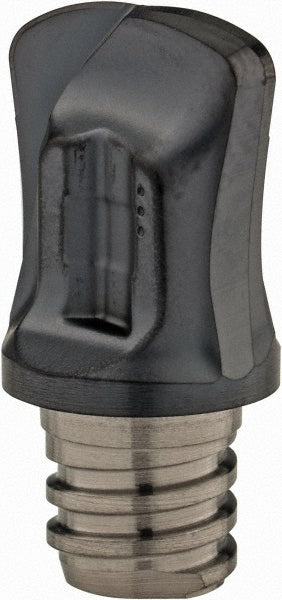

Carbide Insert, Grade IC908, TiAlN - Iscar 5693138

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5693138

MFR# 5693138Series MM FF

$71.68List $91.80 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5693138 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle50degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0600
Cutting width0.3750in
Extension from holder in0.4900
Functional length0.4900
Included angle degree85
Insert handRight Hand
Insert size375R06-L49
Lead angle100
Length of cut0.0200in
Manufacturers catalog number5693138
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.0200
Milling tip full descriptionMM FF375R06-L49-2T06
Milling tip styleMM FF
Milling tip typeHigh Feed
Number of flutes2
Overall length0.4900in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
