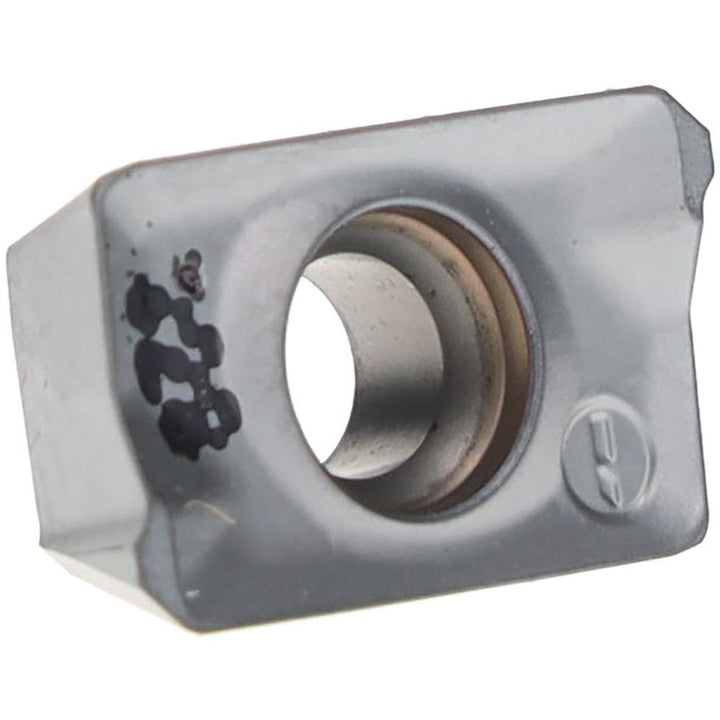

ADKT 1505ADR-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5693564

Iscar

ADKT 1505ADR-HM Solid Carbide Insert, Grade IC328, TiCN - Iscar 5693564

MFR# 5693564ISO/ANSI# ADKT 1505ADR-HMCat# ADKT 1505ADR-HM IC328Series HELIMILL

$23.89List $30.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5693564 is a ADKT 1505ADR-HM solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADKT 1505ADR-HM IC328
Chip breakerHM
Coating finishTiCN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.3350
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADKT
Iso codeADKT 1505ADR-HM
Length0.6300
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 1505ADR-HM IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3350
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2170
Thickness range0.2000 to 0.2200
Width0.3770
