Iscar

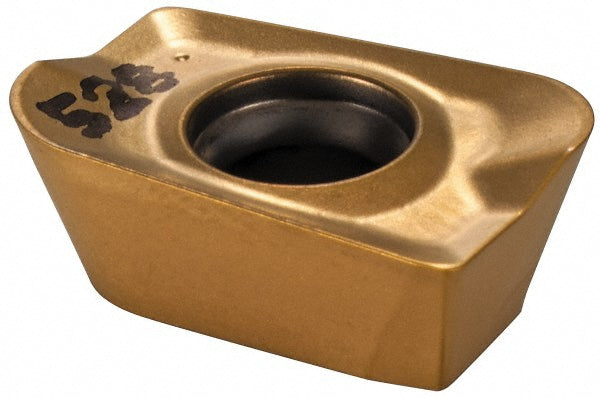

ADKT 150532R Solid Carbide Insert, Grade IC528, TiCN - Iscar 5693865
MFR# 5693865ISO/ANSI# ADKT 150532RCat# ADKT 150532R IC-528Series HELIMILL
$23.89List $30.60
Save 21%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIC528
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5693865 is a ADKT 150532R solid carbide indexable insert, grade IC528, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeADKT 150532R IC-528
Chip breakerR
Coating finishTiCN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5390
Cutting edge styleHoned
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150532
Insert styleADKT
Iso codeADKT 150532R
Length0.6100
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 150532R IC-528
Manufacturer gradeIC528
Material applicationSteel; Stainless Steel
Material gradeC5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2200
Thickness range0.2200 to 0.2350
Width in3/8
