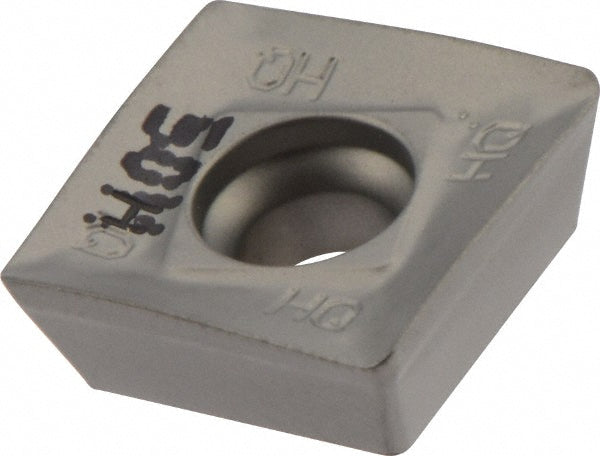

SDMT 1205PDR-HQ Solid Carbide Insert, Grade IC50M - Iscar 5693883

Iscar

SDMT 1205PDR-HQ Solid Carbide Insert, Grade IC50M - Iscar 5693883

MFR# 5693883ISO/ANSI# SDMT 1205PDR-HQCat# SDMT 1205PDR-HQ IC50MSeries HELIQUAD

$14.29List $18.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC50M
MaterialSolid Carbide

Description

The Iscar 5693883 is a SDMT 1205PDR-HQ solid carbide indexable insert, grade IC50M. Suited for steel, stainless steel.

Specifications

Ansi codeSDMT 1205PDR-HQ IC50M
Chip breakerHQ
Coating processUncoated
Corner radius0.0000
Cutter series compatibilitySDK; F90SD-12
Cutting edge effective length0.5000
Cutting edge styleHelical
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSDMT
Iso codeSDMT 1205PDR-HQ
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSDMT 1205PDR-HQ IC50M
Manufacturer gradeIC50M
Material applicationSteel; Stainless Steel
Maximum depth of cut0.3940
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width in1/2
