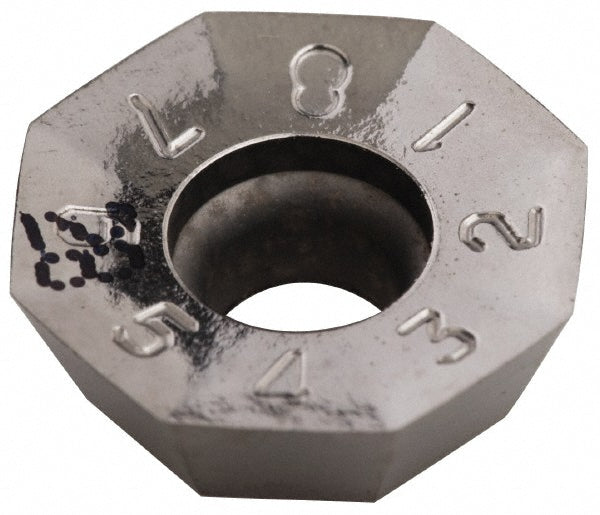

OECR 060405AER-P Solid Carbide Insert, Grade IC28 - Iscar 5694179

Iscar

OECR 060405AER-P Solid Carbide Insert, Grade IC28 - Iscar 5694179

MFR# 5694179ISO/ANSI# OECR 060405AER-PCat# OECR 060405AER-P IC28Series HELIOCTO

$22.65List $29.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeOctagon
GradeIC28
MaterialSolid Carbide

Description

The Iscar 5694179 is a OECR 060405AER-P solid carbide indexable insert, grade IC28. Suited for non-ferrous metal.

Specifications

Ansi codeOECR 060405AER-P IC28
Chip breakerP
Coating processUncoated
Corner radius0.0197
Cutter series compatibilityHOF-R06; HOE-R06
Cutting edge effective length0.1460
Cutting edge styleSharp
Included angle degree135
Inscribed circle0.5689
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060405
Insert styleOECR
Iso codeOECR 060405AER-P
Length0.5689
Length range0.5000 to 0.6000
Manufacturers catalog numberOECR 060405AER-P IC28
Manufacturer gradeIC28
Material applicationNon-Ferrous Metal
Material gradeC5; C6
Maximum depth of cut0.1460
Multi use toolYes
Number of cutting edges8
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1930
Thickness range0.1850 to 0.2000
Width0.5689
