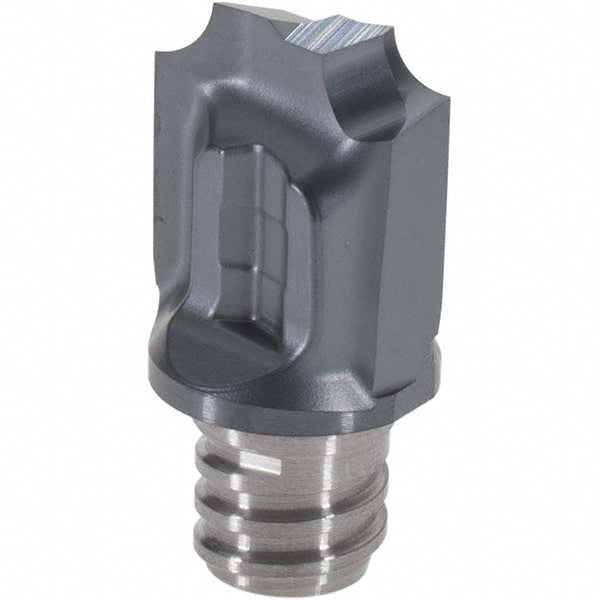

Carbide Insert, Grade IC908, TiAlN - Iscar 5694363

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5694363

MFR# 5694363Series MM HR

$76.68List $98.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5694363 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0788
Cutting diameter0.2364
Cutting width0.2364in
Extension from holder in0.4920
Functional length0.4925
Included angle degree90
Insert handRight Hand
Insert size2.0/078-6.0
Lead angle90
Length of cut0.3743in
Manufacturers catalog number5694363
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.3743
Milling tip full descriptionMM HR2.0/078-6.0-2T06
Milling tip styleMM HR
Milling tip typeCorner Rounding
Number of flutes2
Overall length0.4925in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
