Iscar

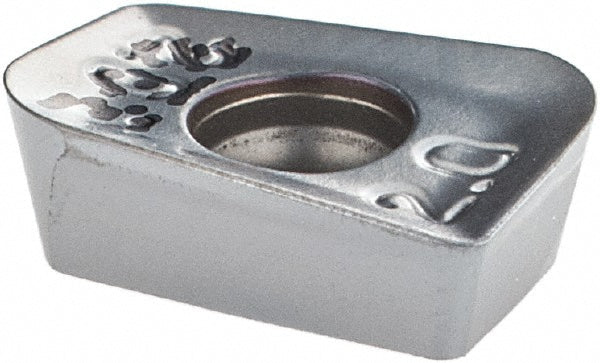

APKT 100325R Solid Carbide Insert, Grade IC328, TiCN - Iscar 5695085
MFR# 5695085ISO/ANSI# APKT 100325RCat# APKT 100325R IC328Series HELIMILL
$21.85List $27.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5695085 is a APKT 100325R solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPKT 100325R IC328
Chip breakerR
Coating finishTiCN
Coating processPVD
Corner radius0.0984
Cutter series compatibilityHM90-10
Cutting edge effective length0.3150
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100325
Insert styleAPKT
Iso codeAPKT 100325R
Length0.3980
Length range0.3200 to 0.4000
Manufacturers catalog numberAPKT 100325R IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2640
