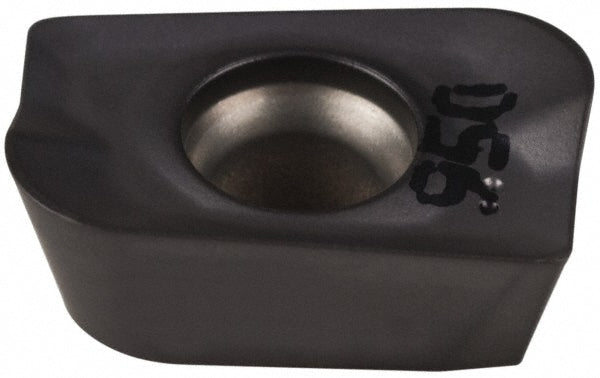

ADKT 150532R-HM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5695867

Iscar

ADKT 150532R-HM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5695867

MFR# 5695867ISO/ANSI# ADKT 150532R-HMCat# ADKT 150532R-HM IC950Series HELIMILL

$23.89List $30.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5695867 is a ADKT 150532R-HM solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeADKT 150532R-HM IC950
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5390
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150532
Insert styleADKT
Iso codeADKT 150532R-HM
Length0.6100
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 150532R-HM IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Material gradeC1; C2; C3; C5; C6
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.3770
