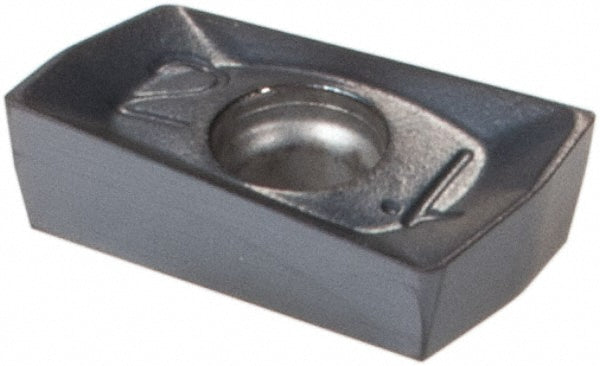

HP ANCT 070202 PN-R Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5696065

Iscar

HP ANCT 070202 PN-R Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5696065

MFR# 5696065ISO/ANSI# HP ANCT 070202 PN-RCat# HP ANCT 070202 PN-R IC910Series HELIPLUS

$21.31List $27.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5696065 is a HP ANCT 070202 PN-R solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeHP ANCT 070202 PN-R IC910
Chip breakerR
Coating finishAlTiN
Coating processPVD
Corner radius in1/128
Cutter series compatibilityHP-ANK-07; HP .90-07
Cutting edge effective length0.3030
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.1770
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size07
Insert size code070202
Insert styleANCT
Iso codeHP ANCT 070202 PN-R
Length0.3430
Length range0.3200 to 0.4000
Manufacturers catalog numberHP ANCT 070202 PN-R IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.3030
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle32
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1020
Thickness range0.1000 to 0.1250
Width0.1770
