Iscar

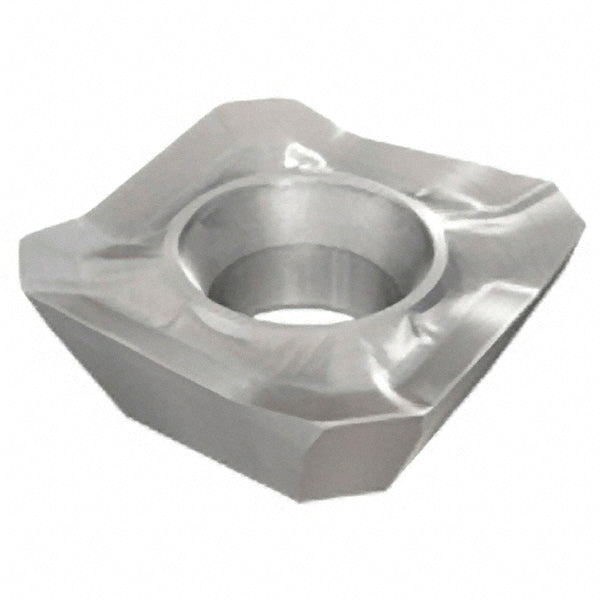

SEKT 09T3AF-N Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5696103
MFR# 5696103ISO/ANSI# SEKT 09T3AF-NCat# SEKT 09T3AF-N IC928Series ISCARMILL
$14.81List $19.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5696103 is a SEKT 09T3AF-N solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSEKT 09T3AF-N IC928
Chip breakerN
Coating finishTiAlN
Coating processPVD
Corner radius0.0000
Cutting edge effective length0.3780
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code09T3
Insert styleSEKT
Iso codeSEKT 09T3AF-N
Length0.3780
Length range0.3200 to 0.4000
Manufacturers catalog numberSEKT 09T3AF-N IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.1770
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.3780
