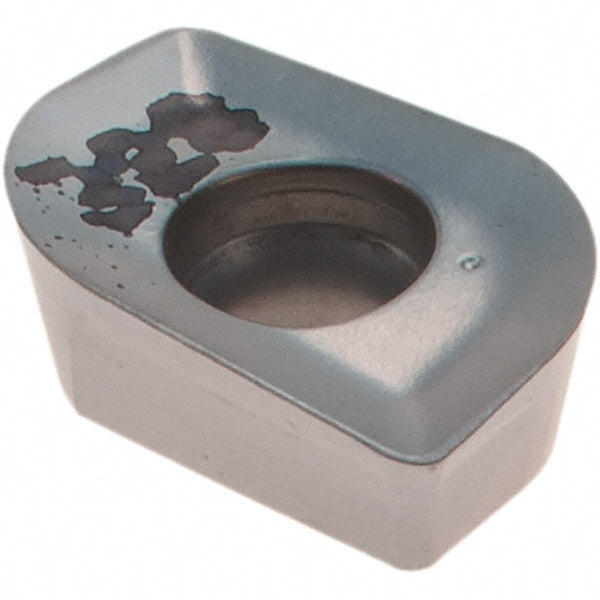

APKT 100340R Solid Carbide Insert, Grade IC328, TiCN - Iscar 5696715

Iscar

APKT 100340R Solid Carbide Insert, Grade IC328, TiCN - Iscar 5696715

MFR# 5696715ISO/ANSI# APKT 100340RCat# APKT 100340R IC328Series HELIMILL

$21.47List $27.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN

Description

The Iscar 5696715 is a APKT 100340R solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeAPKT 100340R IC328
Chip breakerR
Coating finishTiCN
Coating processPVD
Corner radius0.1575
Cutter series compatibilityHM90-10
Cutting edge effective length0.3150
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code100340
Insert styleAPKT
Iso codeAPKT 100340R
Length0.3980
Length range0.3200 to 0.4000
Manufacturers catalog numberAPKT 100340R IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3150
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1340
Thickness range0.1250 to 0.1500
Width in17/64
