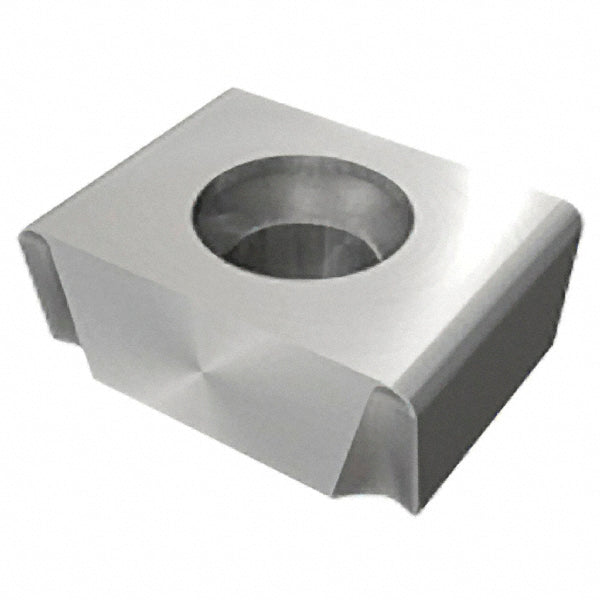

LNET 125708-TN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5696840

Iscar

LNET 125708-TN Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5696840

MFR# 5696840ISO/ANSI# LNET 125708-TNCat# LNET 125708-TN IC910Series TANGSLOT

$24.91List $31.90 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeButterfly
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5696840 is a LNET 125708-TN solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeLNET 125708-TN IC910
Chip breakerTN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityFDN; SDN
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2264
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size12
Insert size code125708
Insert styleLNET
Iso codeLNET 125708-TN
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNET 125708-TN IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Relief angle0
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness in3/8
Thickness range0.3500 to 0.5000
Width0.2264
