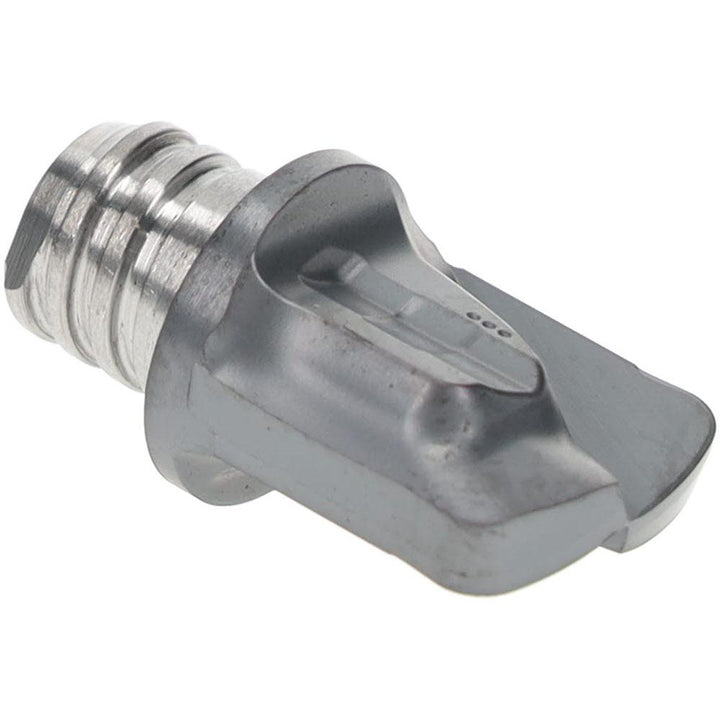

Carbide Insert, Grade IC908, TiAlN - Iscar 5696877

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5696877

MFR# 5696877Series MM FF

$89.80List $115.00 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIC908
CoatingTiAlN

Description

The Iscar 5696877 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle47degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.0800
Cutting width0.5004in
Extension from holder in0.5910
Functional length0.5910
Included angle degree85
Insert handRight Hand
Insert size500R08-L59
Lead angle95
Length of cut0.0268in
Manufacturers catalog number5696877
Manufacturer gradeIC908
Material gradeSub Micrograin
Maximum depth of cut0.0268
Milling tip full descriptionMM FF500R08-L59-2T08
Milling tip styleMM FF
Milling tip typeHigh Feed
Number of flutes2
Overall length0.5910in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
