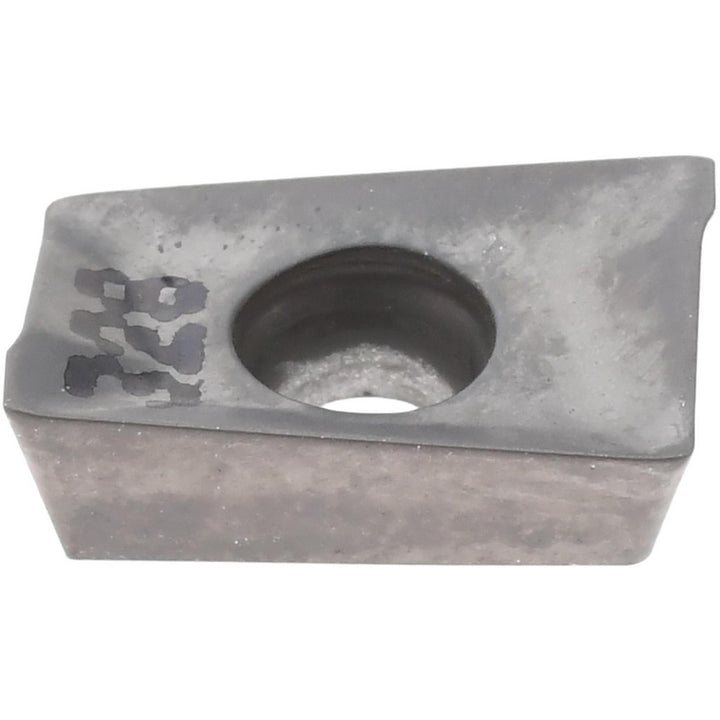

APKT 1003PDTR-8M Solid Carbide Insert, Grade IC328, TiCN - Iscar 5696925
MFR# 5696925ISO/ANSI# APKT 1003PDTR-8MCat# APKT 1003PDTR-8M IC328Series HELIMILL
$21.47List $27.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC328
MaterialSolid Carbide
CoatingTiCN
Description
The Iscar 5696925 is a APKT 1003PDTR-8M solid carbide indexable insert, grade IC328, TiCN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeAPKT 1003PDTR-8M IC328
Chip breaker8M
Coating finishTiCN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHM90-10
Cutting edge effective length0.3960
Cutting edge styleChamfered; Honed
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code1003
Insert styleAPKT
Iso codeAPKT 1003PDTR-8M
Length0.4310
Length range0.4000 to 0.4500
Manufacturers catalog numberAPKT 1003PDTR-8M IC328
Manufacturer gradeIC328
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC2; C3; C5; C6
Maximum depth of cut0.3860
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1400
Thickness range0.1250 to 0.1500
Width0.2640
