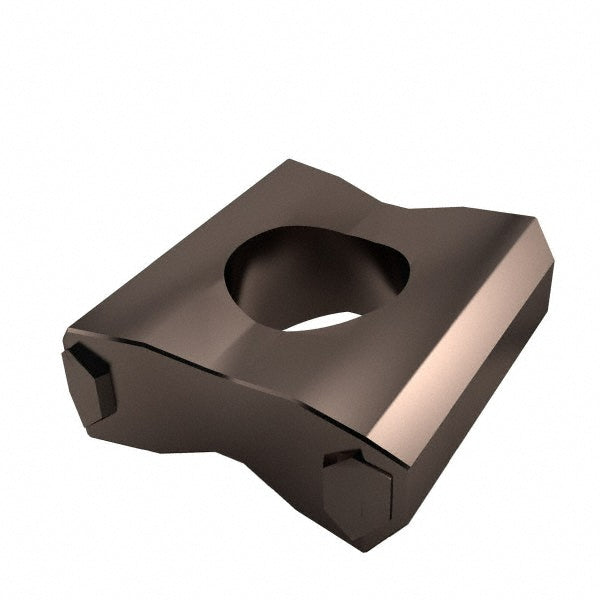

LNKX 150608ANTN MM Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5697462
MFR# 5697462ISO/ANSI# LNKX 150608ANTN MMCat# LNKX 150608ANTN MM IC908Series TANGMILL
$30.84List $39.50
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5697462 is a LNKX 150608ANTN MM solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeLNKX 150608ANTN MM IC908
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF45LN
Cutting edge effective length0.6024
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.2360
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size15
Insert size code150608
Insert styleLNKX
Iso codeLNKX 150608ANTN MM
Length0.6024
Length range0.6000 to 0.6500
Manufacturers catalog numberLNKX 150608ANTN MM IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.2950
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle27
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.5080
Thickness range0.5000+
Width0.2360
