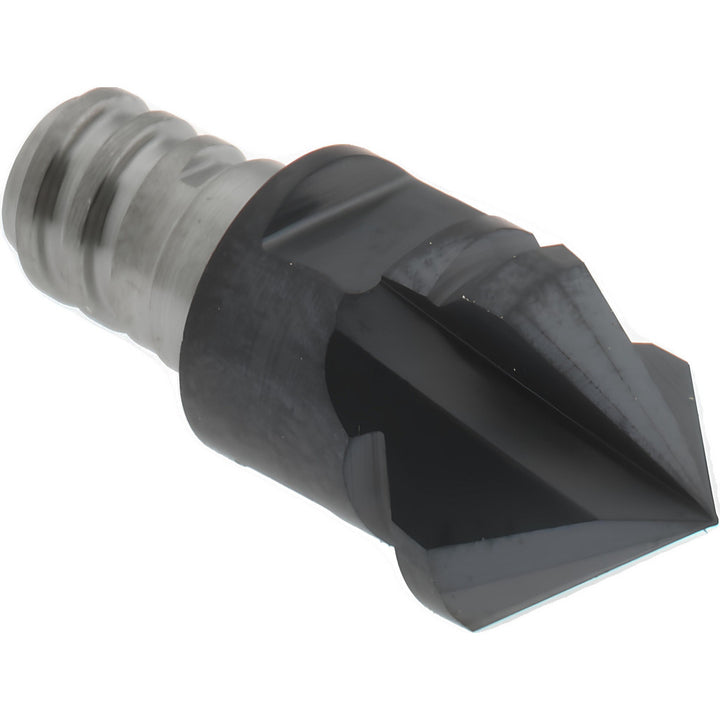

Carbide Insert, Grade IC908, TiAlN - Iscar 5697508

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5697508

MFR# 5697508Series MM EDF

$99.47List $127.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC908
CoatingTiAlN

Description

The Iscar 5697508 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.3700
Cutting width0.3700in
Extension from holder in0.4920
Functional length0.4920
Included angle degree90
Insert handRight Hand
Insert size094-090-76
Lead angle90
Manufacturers catalog number5697508
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM EDF094-090-76-3T05
Milling tip styleMM EDF
Milling tip typeChamfer
Number of flutes3
Overall length0.4920in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
