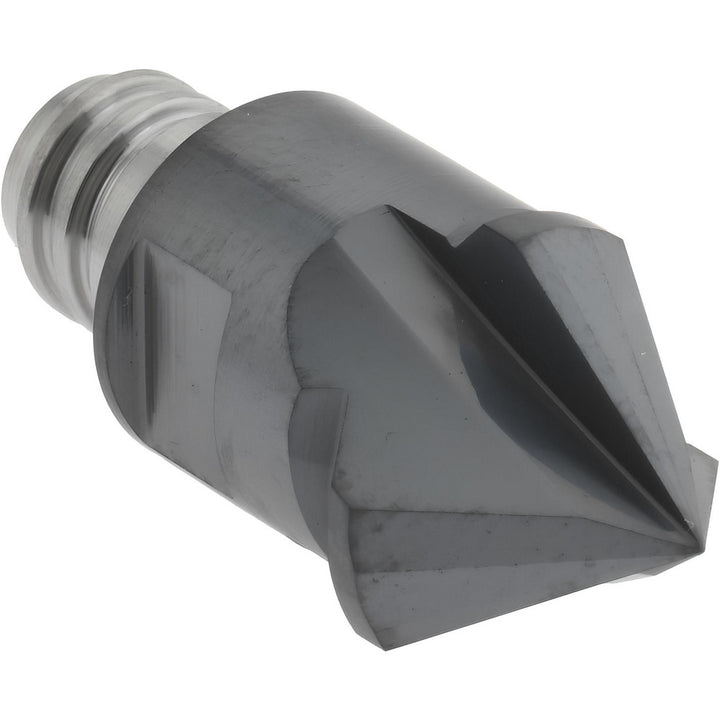

Carbide Insert, Grade IC908, TiAlN - Iscar 5697518

Iscar

Carbide Insert, Grade IC908, TiAlN - Iscar 5697518

MFR# 5697518Series MM EDF

$122.82List $157.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
GradeIC908
CoatingTiAlN

Description

The Iscar 5697518 is a carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chamfer angle0degree
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter0.4570
Cutting width0.4570in
Extension from holder in0.6496
Functional length0.6501
Included angle degree90
Insert handRight Hand
Insert size116-090-95
Lead angle90
Manufacturers catalog number5697518
Manufacturer gradeIC908
Material gradeSub Micrograin
Milling tip full descriptionMM EDF116-090-95-3T06
Milling tip styleMM EDF
Milling tip typeChamfer
Number of flutes3
Overall length0.6501in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
StandardsANSI
Tool materialCarbide
