Iscar

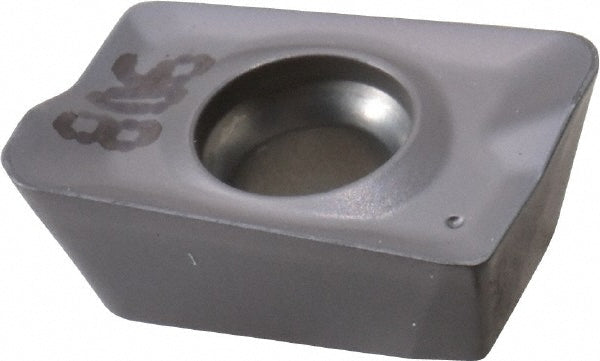

ADKT 150516R-HM Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5697611
MFR# 5697611ISO/ANSI# ADKT 150516R-HMCat# ADKT 150516R-HM IC908Series HELIMILL
$24.31List $30.60
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5697611 is a ADKT 150516R-HM solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeADKT 150516R-HM IC908
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityETS; FTS; ADK; E90
Cutting edge effective length0.5450
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150516
Insert styleADKT
Iso codeADKT 150516R-HM
Length0.6140
Length range0.6000 to 0.6500
Manufacturers catalog numberADKT 150516R-HM IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2200
Thickness range0.2200 to 0.2350
Width0.3770
