Iscar

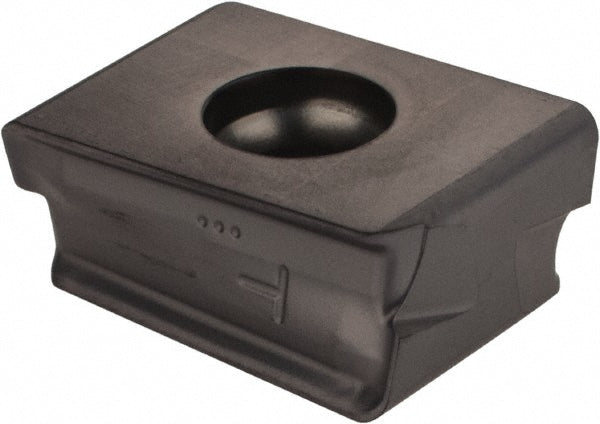

HTP LNHT 1606 ETR Solid Carbide Insert, Grade IC908, TiAlN - Iscar 5697950
MFR# 5697950ISO/ANSI# HTP LNHT 1606 ETRCat# HTP LNHT 1606 ETR IC908Series TANGPLUNGE
$36.07List $46.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeButterfly
GradeIC908
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5697950 is a HTP LNHT 1606 ETR solid carbide indexable insert, grade IC908, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeHTP LNHT 1606 ETR IC908
Chip breakerETR
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityHTP LN16
Cutting edge effective length0.6496
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.2560
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeButterfly
Insert size16
Insert size code1606
Insert styleLNHT
Iso codeHTP LNHT 1606 ETR
Length0.6496
Length range0.6000 to 0.6500
Manufacturers catalog numberHTP LNHT 1606 ETR IC908
Manufacturer gradeIC908
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Maximum depth of cut0.6496
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
Single or double sided insertDouble
StandardsANSI; ISO 13399
Thickness0.4740
Thickness range0.3500 to 0.5000
Width0.2560
