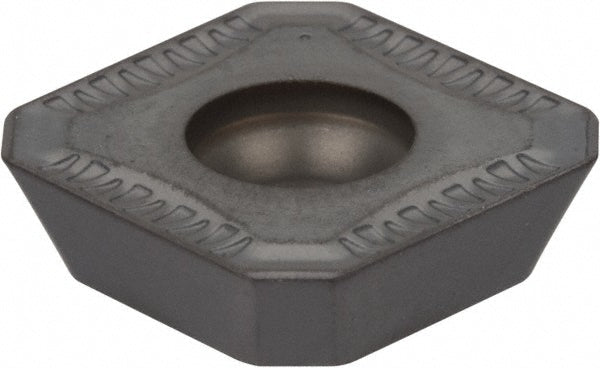

SEMT 12T3AFTN-76 Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5698268

Iscar

SEMT 12T3AFTN-76 Solid Carbide Insert, Grade IC910, AlTiN - Iscar 5698268

MFR# 5698268ISO/ANSI# SEMT 12T3AFTN-76Cat# SEMT 12T3AFTN-76 IC910Series ISCARMILL

$15.21List $19.50 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIC910
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5698268 is a SEMT 12T3AFTN-76 solid carbide indexable insert, grade IC910, AlTiN coated. Suited for steel, cast iron.

Specifications

Ansi codeSEMT 12T3AFTN-76 IC910
Chip breaker76
Coating finishAlTiN
Coating processPVD
Corner radius0.0000
Cutter series compatibilityF45ST
Cutting edge effective length0.5177
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.5180
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code12T3
Insert styleSEMT
Iso codeSEMT 12T3AFTN-76
Length0.5177
Length range0.5000 to 0.6000
Manufacturers catalog numberSEMT 12T3AFTN-76 IC910
Manufacturer gradeIC910
Material applicationSteel; Cast Iron
Material gradeC2; C3; C6
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1460
Thickness range0.1250 to 0.1500
Width0.5177
