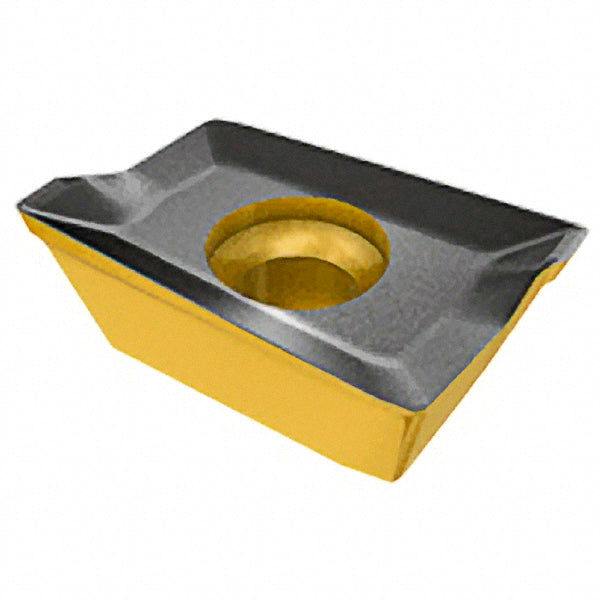

ADKR 150504PDR-HM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5698279

Iscar

ADKR 150504PDR-HM Solid Carbide Insert, Grade IC950, TiAlN - Iscar 5698279

MFR# 5698279ISO/ANSI# ADKR 150504PDR-HMCat# ADKR 150504PDR-HM IC950Series HELIMILL

$20.85List $26.70 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC950
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5698279 is a ADKR 150504PDR-HM solid carbide indexable insert, grade IC950, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeADKR 150504PDR-HM IC950
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityHM90-15
Cutting edge effective length0.5590
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.3780
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150504
Insert styleADKR
Iso codeADKR 150504PDR-HM
Length0.6420
Length range0.6000 to 0.6500
Manufacturers catalog numberADKR 150504PDR-HM IC950
Manufacturer gradeIC950
Material applicationSteel; Cast Iron
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle25
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2220
Thickness range0.2200 to 0.2350
Width0.3780
