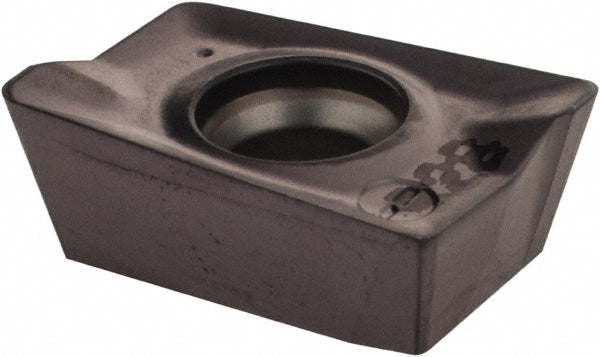

ADCT 1505PDFR-HM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5698498

MFR# 5698498ISO/ANSI# ADCT 1505PDFR-HMCat# ADCT 1505PDFR-HM IC928Series HELIMILL

$32.95List $42.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5698498 is a ADCT 1505PDFR-HM solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeADCT 1505PDFR-HM IC928
Chip breakerHM
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityHM90-15
Cutting edge effective length0.5550
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3770
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code1505
Insert styleADCT
Iso codeADCT 1505PDFR-HM
Length0.6160
Length range0.6000 to 0.6500
Manufacturers catalog numberADCT 1505PDFR-HM IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.4720
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Relief angle15
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.2220
Thickness range0.2200 to 0.2350
Width0.3770
