Iscar

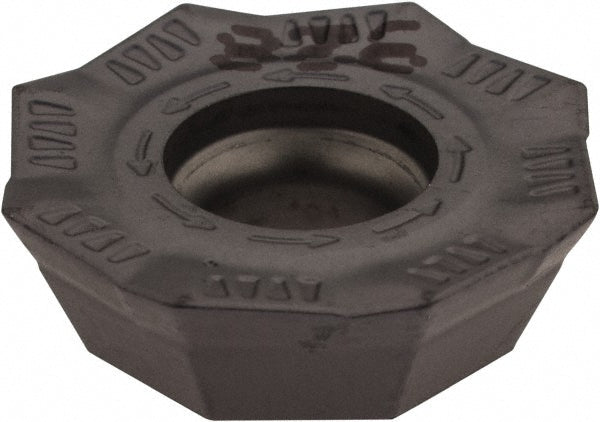

OEMT 060405AER-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5698518
MFR# 5698518ISO/ANSI# OEMT 060405AER-76Cat# OEMT 060405AER-76 IC928Series HELIOCTO
$20.82List $26.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5698518 is a OEMT 060405AER-76 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeOEMT 060405AER-76 IC928
Chip breaker76
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutter series compatibilityHOF-R06; HOE-R06
Cutting edge effective length0.0980
Cutting edge styleT-Land
Included angle degree135
Inscribed circle0.5618
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size06
Insert size code060405
Insert styleOEMT
Iso codeOEMT 060405AER-76
Length0.5618
Length range0.5000 to 0.6000
Manufacturers catalog numberOEMT 060405AER-76 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.0980
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.5618
