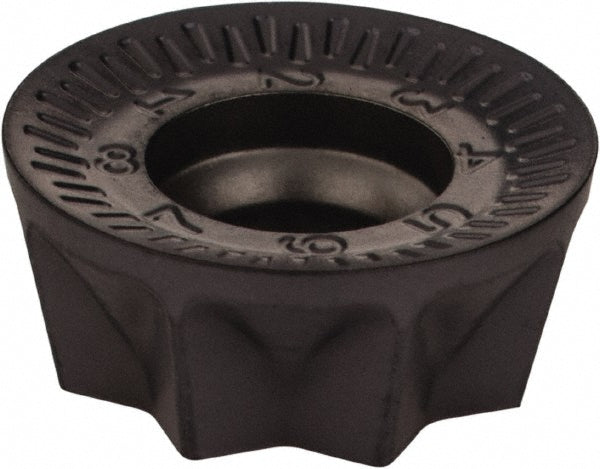

R90MT 1205-RM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5698608

Iscar

R90MT 1205-RM Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5698608

MFR# 5698608ISO/ANSI# R90MT 1205-RMCat# R90MT 1205-RM IC928Series CHAMMILL

$16.79List $21.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRound
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5698608 is a R90MT 1205-RM solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeR90MT 1205-RM IC928
Chip breakerRM
Coating finishTiAlN
Coating processPVD
Corner radius0.2362
Cutter series compatibilityFDN; ECM; ER-M; ERCM
Cutting edge effective length0.4724
Cutting edge styleT-Land
Included angle degree360
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1205
Insert styleR90MT
Iso codeR90MT 1205-RM
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberR90MT 1205-RM IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2362
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.4724
