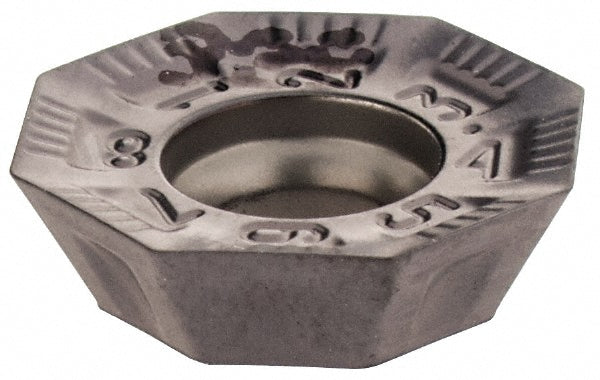

OFMT 05T305TN-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5698918

Iscar

OFMT 05T305TN-76 Solid Carbide Insert, Grade IC928, TiAlN - Iscar 5698918

MFR# 5698918ISO/ANSI# OFMT 05T305TN-76Cat# OFMT 05T305TN-76 IC928Series HELIOCTO

$16.48List $21.10 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeOctagon
GradeIC928
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5698918 is a OFMT 05T305TN-76 solid carbide indexable insert, grade IC928, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeOFMT 05T305TN-76 IC928
Chip breaker76
Coating finishTiAlN
Coating processPVD
Corner radius0.0236
Cutting edge effective length0.1600
Cutting edge styleT-Land
Included angle degree135
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size05
Insert size code05T305
Insert styleOFMT
Iso codeOFMT 05T305TN-76
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberOFMT 05T305TN-76 IC928
Manufacturer gradeIC928
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC1; C2; C5; C6
Maximum depth of cut0.1600
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle25
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1570
Thickness range0.1500 to 0.1750
Width in1/2
