Iscar

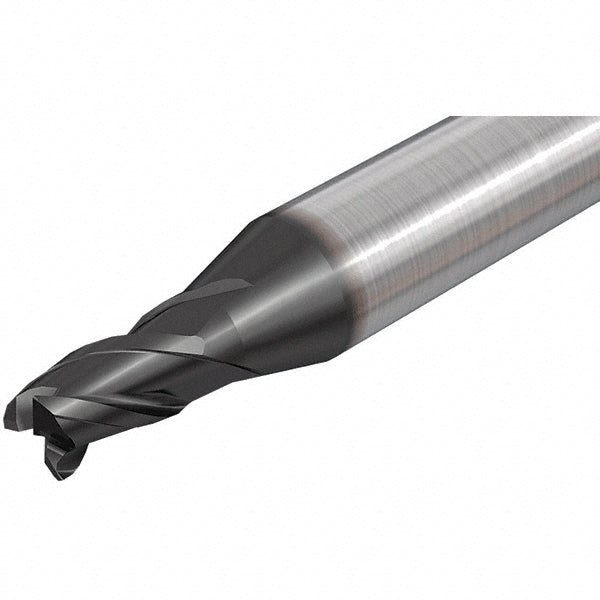

0.1890" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - Iscar 5699461
MFR# 5699461Series ECU-E-3-R
$46.23List $59.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5699461 is a 0.1890 3-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series ECU-E-3-R.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0079
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleMedium
Length of cut1.7717
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter0.1890
Mill diameter tolerancee8
Number of flutes3
Overall length (mm)57.00
PitchCoarse
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter (mm)6.00
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
