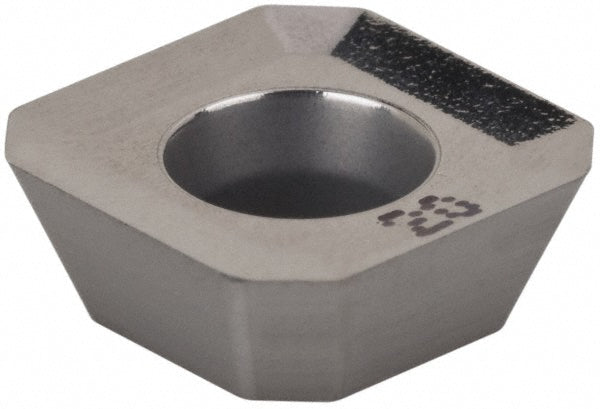

SEHT 1204AFN-P Solid Carbide Insert, Grade IC20 - Iscar 5699770
MFR# 5699770ISO/ANSI# SEHT 1204AFN-PCat# SEHT 43AFN-P IC20Series ISCARMILL
$22.14List $27.90
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeIC20
MaterialSolid Carbide
Description
The Iscar 5699770 is a SEHT 1204AFN-P solid carbide indexable insert, grade IC20. Suited for stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Ansi codeSEHT 43AFN-P IC20
Chip breakerP
Coating processUncoated
Corner radius0.0000
Cutter series compatibilityF45ST
Cutting edge effective length0.5000
Cutting edge styleSharp
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code43
Insert styleSEHT
Iso codeSEHT 1204AFN-P
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEHT 43AFN-P IC20
Manufacturer gradeIC20
Material applicationStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeC2; C3
Maximum depth of cut0.2560
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI; ISO 13399
Thickness0.1870
Thickness range0.1850 to 0.2000
Width in1/2
