Iscar

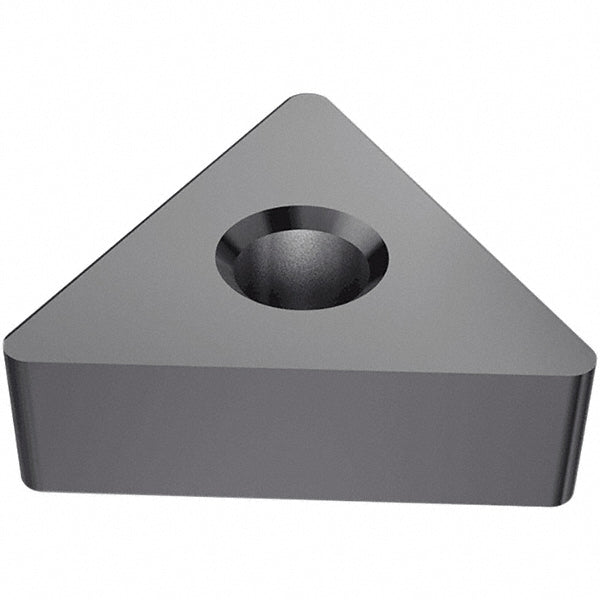

ISO 13399 Ceramic Insert, Grade IN23 - Iscar 5700399
MFR# 5700399ISO/ANSI# ISO 13399Series Isoturn
$16.09List $18.40
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIN23
MaterialCeramic
Description
The Iscar 5700399 is a ISO 13399 ceramic indexable insert, grade IN23. Suited for cast iron, hard material.
Specifications
Chip breakerT
Clearance codeN
Coating processUncoated
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCeramic
Insert shapeTriangle
Insert size code332
Insert styleTNGA
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIN23
Maximum depth of cut0.1378
Primary workpiece materialCast Iron; Hard Material
Relief angle0
StandardsISO 13399
Tolerance codeG
