Iscar

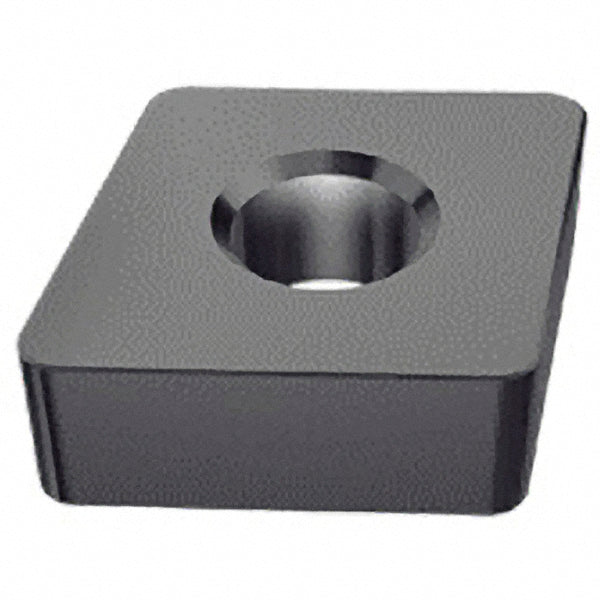

ISO 13399 Ceramic Insert, Grade IN23, Al2O3 - Iscar 5700419
MFR# 5700419ISO/ANSI# ISO 13399Series Isoturn
$18.10List $20.70
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIN23
MaterialCeramic
CoatingAl2O3
Description
The Iscar 5700419 is a ISO 13399 ceramic indexable insert, grade IN23, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Chip breakerT
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in3/64
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCeramic
Insert shapeDiamond
Insert size code433
Insert styleCNGA
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIN23
Maximum depth of cut0.0197
Primary workpiece materialCast Iron; Hard Material
Relief angle0
StandardsISO 13399
Tolerance codeG
