Iscar

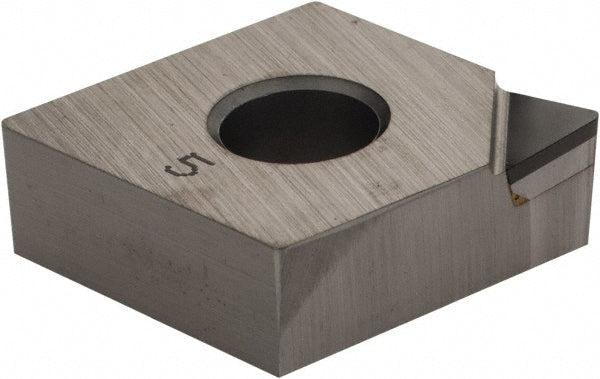

ISO 13399 PCD Insert, Grade ID5 - Iscar 5700451
MFR# 5700451ISO/ANSI# CNMA120404Series Isoturn
$141.00List $145.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeID5
MaterialPCD
Description
The Iscar 5700451 is a ISO 13399 pcd indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Ansi insert codeCNMA431
Ansi size code431
Chip breakerD
Clearance codeN
Coating processPCD
Corner radius in1/64
Grade characteristicsAluminum & Non-Ferrous (N) - High Wear-Resistance; Hardened Materials (H) - Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMA
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNMA120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturer gradeID5
Maximum depth of cut0.1180
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle0
Side clearanceNegative
Single or multi tippedSingle Tipped
StandardsISO 13399
Stocking categoryD
Tolerance codeM
