Iscar

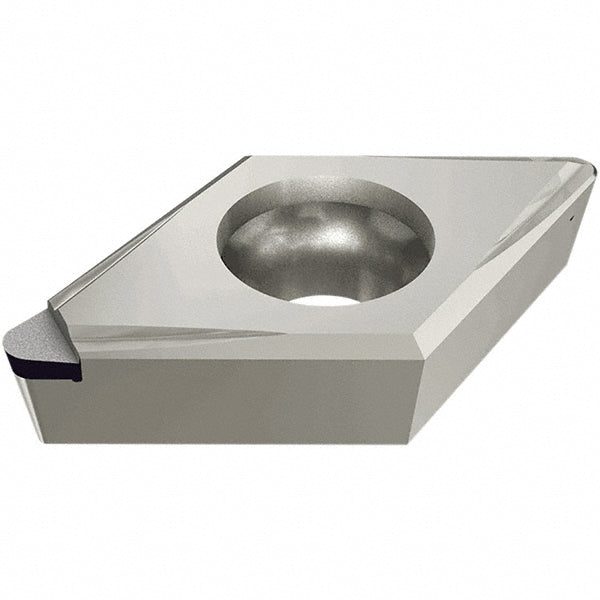

ISO 13399 Polycrystalline Diamond Insert, Grade ID5 - Iscar 5700455
MFR# 5700455ISO/ANSI# ISO 13399Series Isoturn
$143.58List $153.00
Save 6%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeID5
MaterialPolycrystalline Diamond
Description
The Iscar 5700455 is a ISO 13399 polycrystalline diamond indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Chip breakerT
Clearance codeC
Coating processPCD
Corner radius in1/32
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.4567
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code3-2
Insert styleDCMT
Insert thickness in5/32
Iso codeISO 13399
Length range0.4000 - 0.5000
Manufacturer gradeID5
Maximum depth of cut0.1181
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7
Relief angle7
Single or multi tippedSingle Tipped
StandardsISO 13399
Tolerance codeM
