Iscar

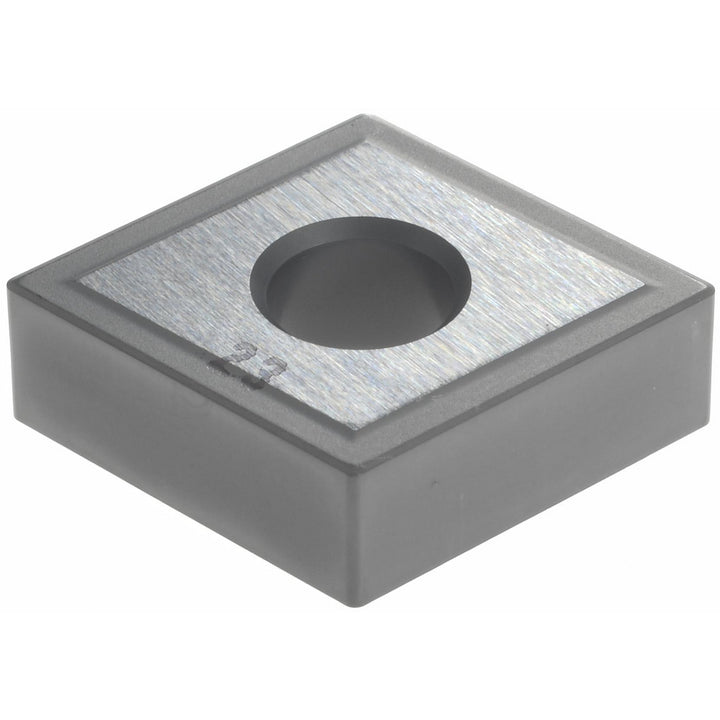

ISO 13399 Ceramic Insert, Grade IN23, Al2O3 - Iscar 5700470
MFR# 5700470ISO/ANSI# CNMG120404Series Isoturn
$13.75List $15.70
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIN23
MaterialCeramic
CoatingAl2O3
Description
The Iscar 5700470 is a ISO 13399 ceramic indexable insert, grade IN23, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerT
Chip breaker operationFinishing
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNMG120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturer gradeIN23
Maximum depth of cut0.1180
Primary workpiece materialCast Iron; Hard Material
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeM
