Iscar

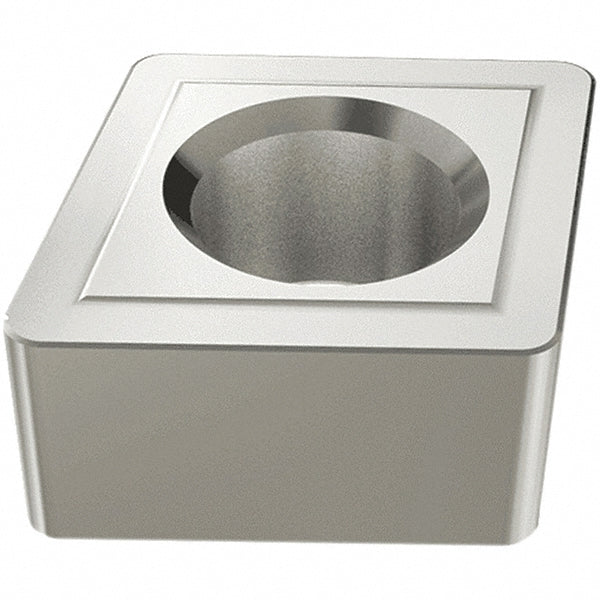

Diamond 1/2" IC Ceramic Insert, Grade IN23 - Iscar 5700472
MFR# 5700472
$17.07List $19.50
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIN23
MaterialCeramic
Description
The Iscar 5700472 is a ceramic indexable insert, grade IN23.
Specifications
Chip breakerT
Clearance codeN
Corner radius in1/32
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialCeramic
Insert shapeDiamond
Insert size code442
Insert styleDNMG
Insert thickness in1/4
Manufacturer gradeIN23
Relief angle0
Stocking categoryD
Tolerance codeM
