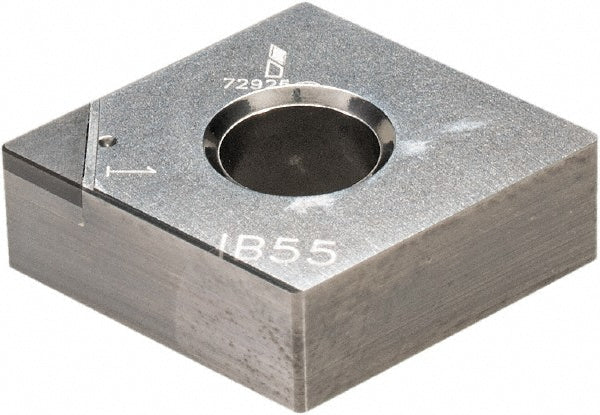

ISO 13399 Cubic Boron Nitride (CBN) Insert, Grade IB55 - Iscar 5700473
MFR# 5700473ISO/ANSI# ISO 13399Series Isoturn
$70.01List $89.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIB55
MaterialCubic Boron Nitride (CBN)
Description
The Iscar 5700473 is a ISO 13399 cubic boron nitride (cbn) indexable insert, grade IB55. Suited for cast iron.
Specifications
Chip breakerT
Clearance codeN
Coating processUncoated
Corner radius in1/64
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code431
Insert styleCNMA
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIB55
Maximum depth of cut0.0197
Primary workpiece materialCast Iron
Relief angle0
Single or multi tippedSingle Tipped
StandardsISO 13399
Stocking categoryD
Tolerance codeM
