Iscar

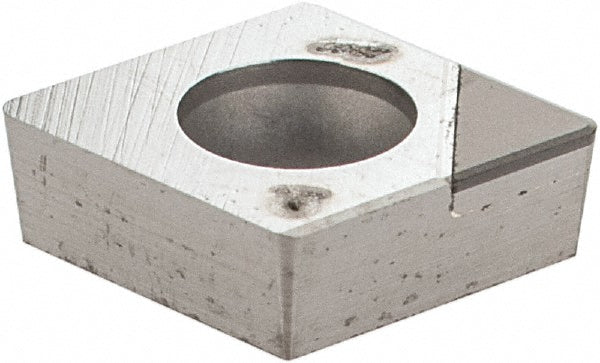

ISO 13399 Cubic Boron Nitride Insert, Grade IB55 - Iscar 5700490
MFR# 5700490ISO/ANSI# ISO 13399Series Isoturn
$70.01List $89.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeIB55
MaterialCubic Boron Nitride
Description
The Iscar 5700490 is a ISO 13399 cubic boron nitride indexable insert, grade IB55. Suited for cast iron.
Specifications
Chip breakerT
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialCubic Boron Nitride
Insert shapeDiamond
Insert size code2-1
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeIB55
Maximum depth of cut0.0197
Primary workpiece materialCast Iron
Relief angle7
Single or multi tippedSingle Tipped
StandardsISO 13399
Stocking categoryD
Tolerance codeM
