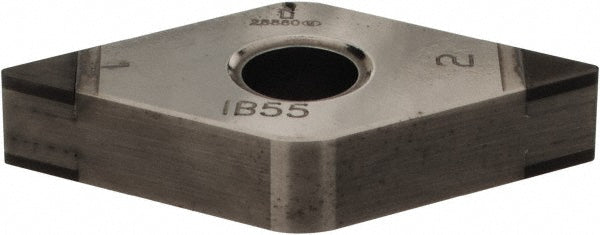

ISO 13399 Cubic Boron Nitride (CBN) Insert, Grade IB55 - Iscar 5700570
MFR# 5700570ISO/ANSI# ISO 13399Series Isoturn
$138.24List $177.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIB55
MaterialCubic Boron Nitride (CBN)
Description
The Iscar 5700570 is a ISO 13399 cubic boron nitride (cbn) indexable insert, grade IB55. Suited for cast iron.
Specifications
Chip breakerTMC
Clearance codeN
Coating processUncoated
Corner radius in1/64
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code431
Insert styleDNGA
Insert thickness in3/16
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIB55
Maximum depth of cut0.0197
Primary workpiece materialCast Iron
Relief angle0
Single or multi tippedMulti Tipped
StandardsISO 13399
Stocking categoryD
Tolerance codeG
