Iscar

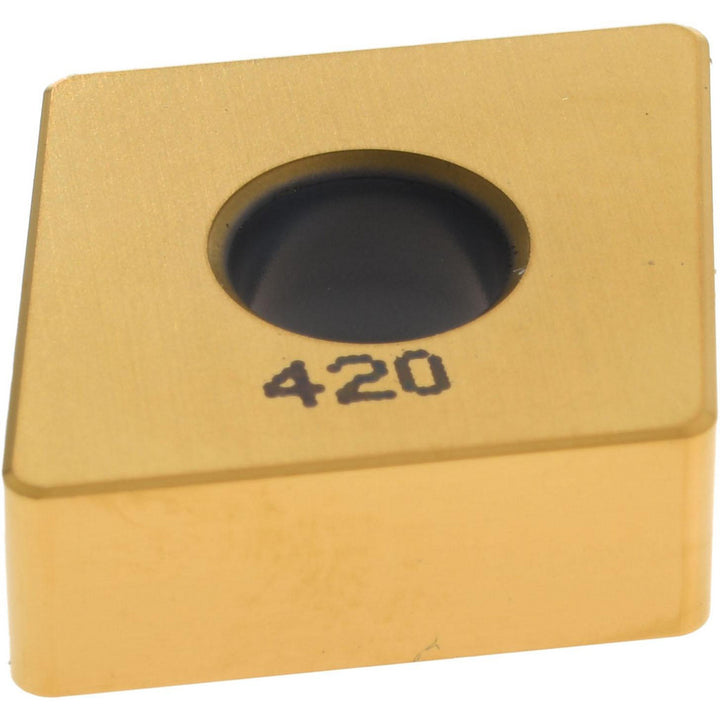

ISO 13399 Ceramic Insert, Grade IN420, Al2O3 - Iscar 5700623
MFR# 5700623ISO/ANSI# CNGA120408Series Isoturn
$23.27List $26.60
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIN420
MaterialCeramic
CoatingAl2O3
Description
The Iscar 5700623 is a ISO 13399 ceramic indexable insert, grade IN420, Al2O3 coated. Suited for cast iron.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerT
Chip breaker operationFinishing
Clearance codeN
Coating finishAl2O3
Coating processPVD
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturer gradeIN420
Maximum depth of cut0.0157
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeG
