Iscar

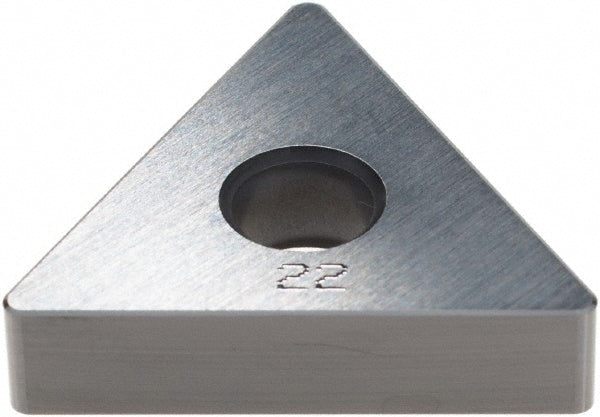

ISO 13399 Ceramic Insert, Grade IN22, Al2O3 - Iscar 5790805
MFR# 5790805ISO/ANSI# ISO 13399Series Isoturn
$23.38List $26.70
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeIN22
MaterialCeramic
CoatingAl2O3
Description
The Iscar 5790805 is a ISO 13399 ceramic indexable insert, grade IN22, Al2O3 coated. Suited for cast iron, hard material.
Specifications
Chip breakerT
Clearance codeN
Coating finishAl2O3
Coating processUncoated
Corner radius in1/32
Included angle60
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCeramic
Insert shapeTriangle
Insert size code432
Insert styleTNGA
Insert thickness in3/16
Iso codeISO 13399
Length range0.7000 - 10.0000
Manufacturer gradeIN22
Maximum depth of cut0.1969
Primary workpiece materialCast Iron; Hard Material
Relief angle0
StandardsISO 13399
Tolerance codeG
