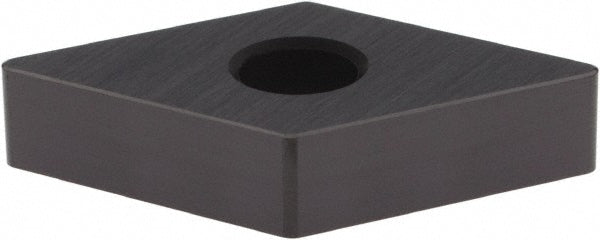

ISO 13399 Ceramic Insert, Grade IN22 - Iscar 5791797
MFR# 5791797ISO/ANSI# DNGA150408Series Isoturn
$21.35List $24.40
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeIN22
MaterialCeramic
Description
The Iscar 5791797 is a ISO 13399 ceramic indexable insert, grade IN22. Suited for cast iron.
Specifications
Ansi insert codeDNGA432
Ansi size code432
Chip breakerT
Chip breaker operationFinishing
Clearance codeN
Coating processUncoated
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCeramic
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeDNGA150408
Iso size code150408
Length range0.6000 - 0.6500
Manufacturer gradeIN22
Material gradeC3; C4
Maximum depth of cut0.1380
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeG
