Iscar

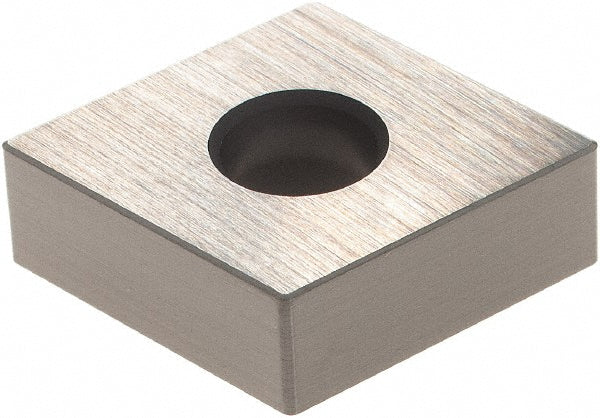

ISO 13399 Ceramic Insert, Grade IN22 - Iscar 5791848
MFR# 5791848ISO/ANSI# CNGA120404Series Isoturn
$18.10List $20.70
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIN22
MaterialCeramic
Description
The Iscar 5791848 is a ISO 13399 ceramic indexable insert, grade IN22. Suited for cast iron.
Specifications
Ansi insert codeCNGA431
Ansi size code431
Chip breakerT
Chip breaker operationFinishing
Clearance codeN
Coating processUncoated
Corner radius in1/64
Grade characteristicsCast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNGA
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNGA120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturer gradeIN22
Material gradeC3; C4
Maximum depth of cut0.0157
Primary workpiece materialCast Iron
Relief angle0
Side clearanceNegative
StandardsISO 13399
Tolerance codeG
