Iscar

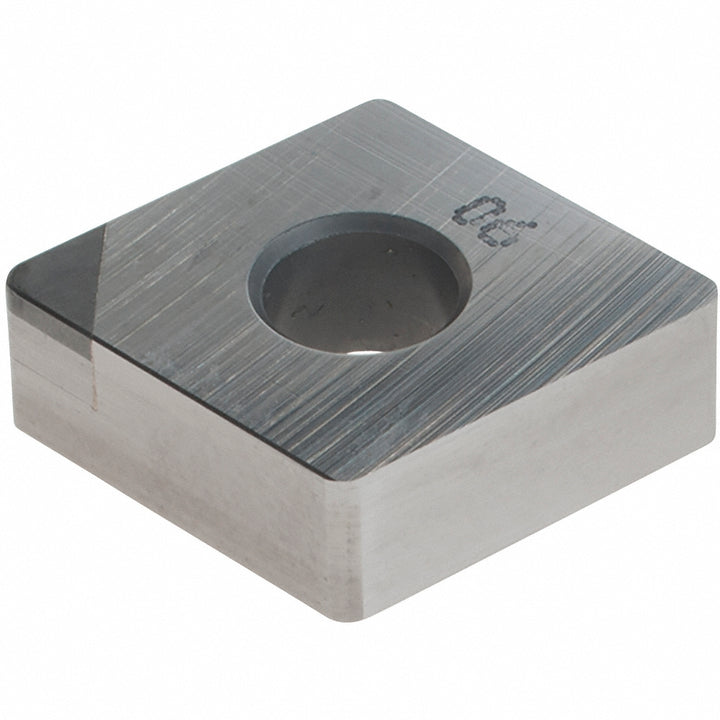

ISO 13399 Cubic Boron Nitride Insert, Grade IB90 - Iscar 5792729
MFR# 5792729ISO/ANSI# ISO 13399Series Isoturn
$70.64List $90.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIB90
MaterialCubic Boron Nitride
Description
The Iscar 5792729 is a ISO 13399 cubic boron nitride indexable insert, grade IB90. Suited for superalloy, titanium.
Specifications
Chip breakerT
Clearance codeN
Coating processUncoated
Corner radius in1/32
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCubic Boron Nitride
Insert shapeDiamond
Insert size code432
Insert styleCNMA
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIB90
Maximum depth of cut0.0197
Primary workpiece materialSuperalloy; Titanium
Relief angle0
StandardsISO 13399
Tolerance codeM
