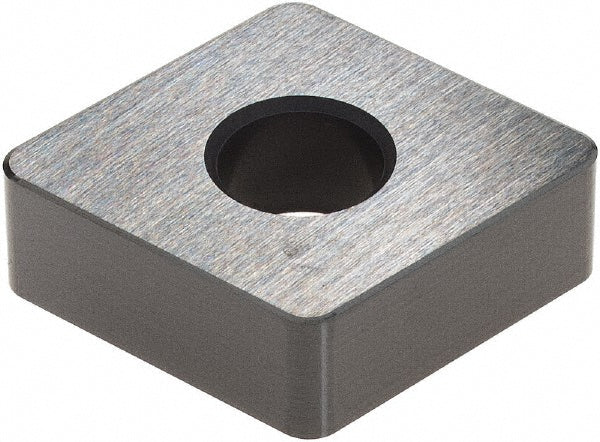

ISO 13399 Ceramic Insert, Grade IN22 - Iscar 5794623
MFR# 5794623ISO/ANSI# CNGA120412Series Isoturn
$18.10List $20.70
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeIN22
MaterialCeramic
Description
The Iscar 5794623 is a ISO 13399 ceramic indexable insert, grade IN22. Suited for cast iron, hard material.
Specifications
Ansi insert codeCNGA433
Ansi size code433
Chip breakerT
Chip breaker operationFinishing
Clearance codeN
Coating processUncoated
Corner radius in3/64
Grade characteristicsCast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNGA
Insert thickness in3/16
Iso codeISO 13399
Iso insert codeCNGA120412
Iso size code120412
Length range0.5000 - 0.6000
Manufacturer gradeIN22
Maximum depth of cut0.0197
Primary workpiece materialCast Iron; Hard Material
Relief angle0
Side clearanceNegative
StandardsISO 13399
Stocking categoryD
Tolerance codeG
