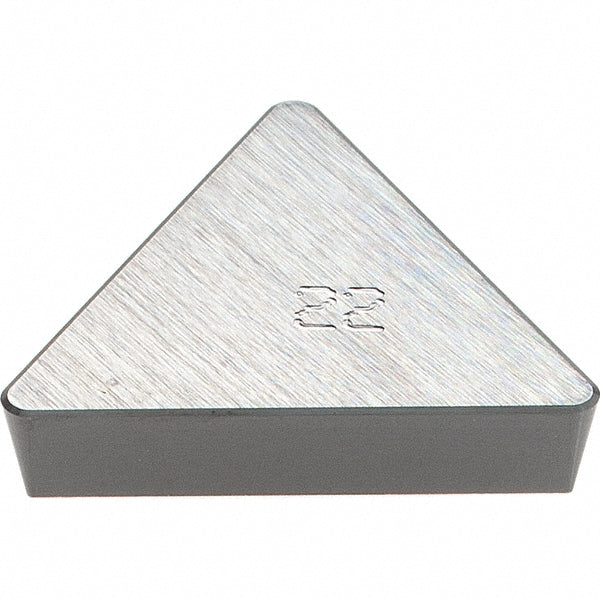

ISO 13399 Ceramic Insert, Grade IN22 - Iscar 5794883
MFR# 5794883ISO/ANSI# ISO 13399Series Isoturn
$15.85List $18.10
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeIN22
MaterialCeramic
Description
The Iscar 5794883 is a ISO 13399 ceramic indexable insert, grade IN22. Suited for cast iron, hard material.
Specifications
Chip breakerT
Clearance codeP
Coating processUncoated
Corner radius in1/32
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp
Insert length0.6496
Insert materialCeramic
Insert shapeTriangle
Insert size code322
Insert styleTPG
Insert thickness in1/8
Iso codeISO 13399
Length range0.6000 - 0.6500
Manufacturer gradeIN22
Maximum depth of cut0.1575
Primary workpiece materialCast Iron; Hard Material
Relief angle11
StandardsISO 13399
Tolerance codeG
