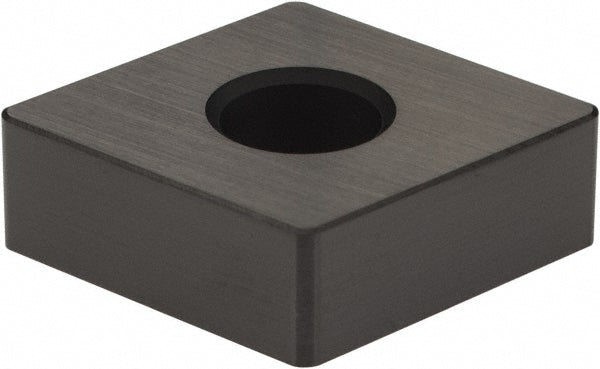

ISO 13399 Ceramic Insert, Grade IN22 - Iscar 5795183
MFR# 5795183ISO/ANSI# ISO 13399Series Isoturn
$18.10List $20.70
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeIN22
MaterialCeramic
Description
The Iscar 5795183 is a ISO 13399 ceramic indexable insert, grade IN22. Suited for cast iron.
Specifications
Chip breakerT
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeISO 13399
Length range0.5000 - 0.6000
Manufacturer gradeIN22
Material gradeC3; C4
Maximum depth of cut0.0157
Primary workpiece materialCast Iron
Relief angle0
StandardsISO 13399
Tolerance codeG
