Iscar

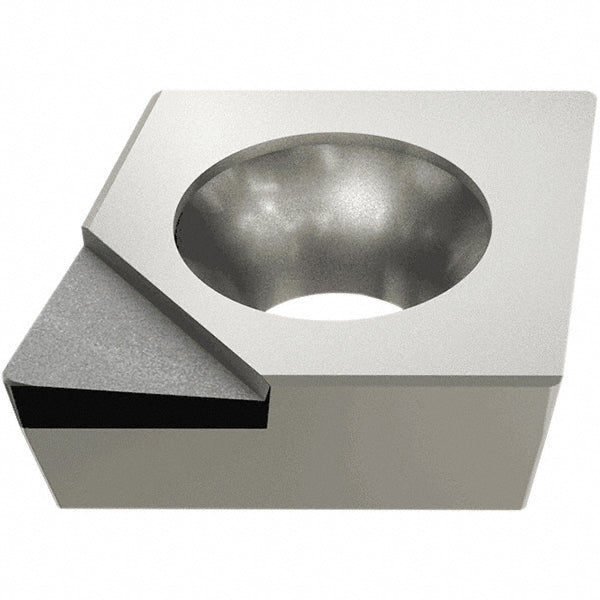

ISO 13399 Polycrystalline Diamond Insert, Grade ID5 - Iscar 5795231
MFR# 5795231ISO/ANSI# ISO 13399Series Isoturn
$141.00List $145.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeID5
MaterialPolycrystalline Diamond
Description
The Iscar 5795231 is a ISO 13399 polycrystalline diamond indexable insert, grade ID5. Suited for non-ferrous metal.
Specifications
Chip breakerT
Clearance codeC
Coating processPCD
Corner radius0.0079
Hole diameter0.1102
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2480
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code2-0
Insert styleCCMT
Insert thickness in3/32
Iso codeISO 13399
Length range0.0000 - 0.3000
Manufacturer gradeID5
Maximum depth of cut0.1181
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle4
Relief angle7
Single or multi tippedSingle Tipped
StandardsISO 13399
Tolerance codeM
